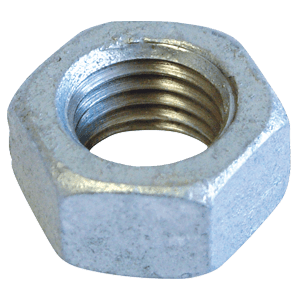

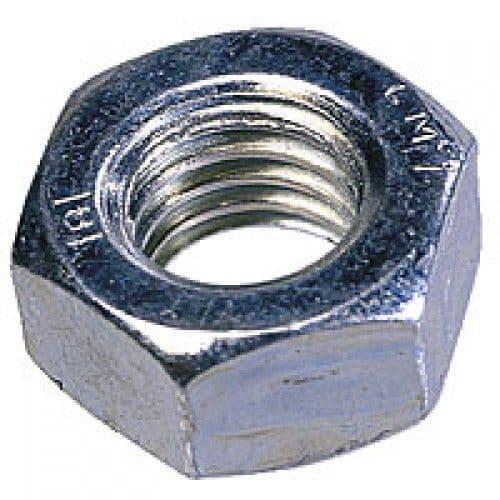

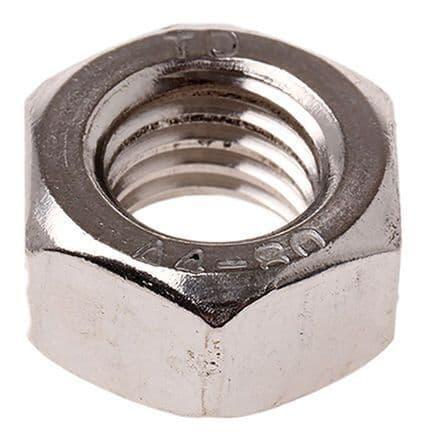

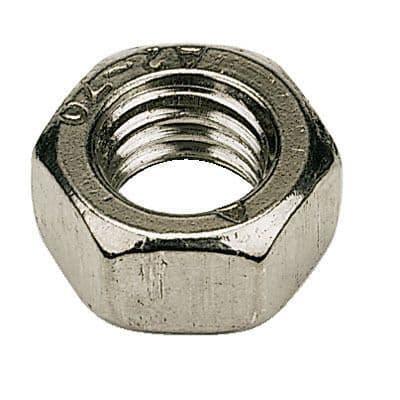

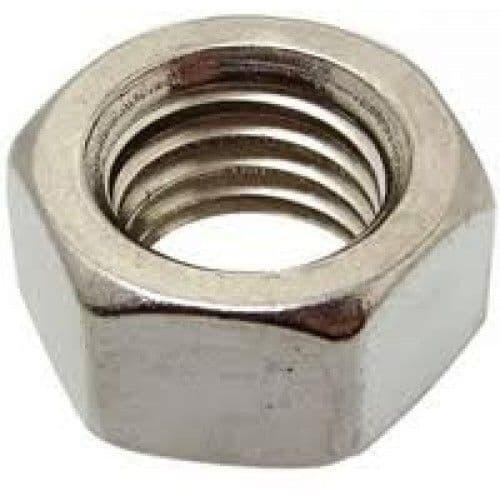

Metric Coarse Full Nuts Grade 8 Self Colour, BZP, HDG, Brass & Stainless Steel
Metric Coarse Hexagon Full Nuts
| Diameter | Pitch | Depth of Nut | Across Flats |
| M3 | 0.5mm | 2.4mm | 5.5mm |
| M4 | 0.7mm | 3.2mm | 7mm |
| M5 | 0.8mm | 4mm | 8mm |
| M6 | 1.0mm | 5mm | 10mm |
| M7 | 1.0mm | 5.5mm | 11mm |
| M8 | 1.25mm | 6.5mm | 13mm |
| M10 | 1.5mm | 8mm | 17mm |
| M12 | 1.75mm | 10mm | 19mm |
| M14 | 2mm | 11mm | 22mm |
| M16 | 2mm | 13mm | 24mm |
| M18 | 2.5mm | 15mm | 27mm |
| M20 | 2.5mm | 16mm | 30mm |
| M22 | 2.5mm | 18mm | 32mm |
| M24 | 3.0mm | 19mm | 36mm |
| M27 | 3.0mm | 22mm | 41mm |
| M30 | 3.5mm | 24mm | 46mm |
| M33 | 3.5mm | 26mm | 50mm |
| M36 | 4mm | 29mm | 55mm |
| M39 | 4mm | 31mm | 60mm |
| M42 | 4.5mm | 34mm | 65mm |
| M45 | 4.5mm | 36mm | 70mm |
| M48 | 5mm | 38mm | 75mm |
| M52 | 5mm | 42mm | 80mm |
| M56 | 5.5mm | 45mm | 85mm |
| M60 | 5.5mm | 48mm | 90mm |
| M64 | 6mm | 51mm | 95mm |
| M68 | 6mm | 58mm | 100mm |
| M72 | 6mm | 58mm | 105mm |
| M76 | 6mm | 61mm | 110mm |
| M80 | 6mm | 64mm | 115mm |
| M90 | 6mm | 72mm | 130mm |
| M100 | 6mm | 80mm | 145mm |
| M110 | 6mm | 88mm | 155mm |
