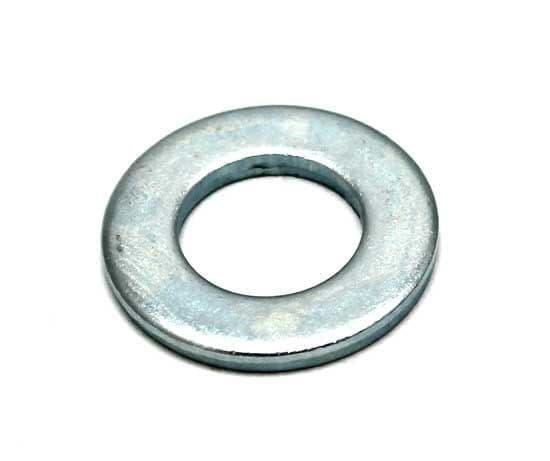

Metric Form A Self Colour DIN 125
Flat Washers Self Colour Form A To Spec DIN 125
M4 - M10 Flat Washers Are Packed In 100's
M12 - M24 Flat Washers Are Packed In 10's
M27 - M64 Flat Washers Are Sold Individually
| Bolt Size | Inside Diameter | Outside Diameter | Thickness |
|---|---|---|---|
| M1 | 1.1mm | 3.2mm | 0.3mm |
| M1.2 | 1.3mm | 3.8mm | 0.3mm |
| M1.4 | 1.5mm | 3.8mm | 0.3mm |
| M1.6 | 1.7mm | 4.0mm | 0.3mm |
| M2 | 2.2mm | 5.0mm | 0.3mm |
| M2.5 | 2.7mm | 6.0mm | 0.5mm |
| M3 | 3.2mm | 7.0mm | 0.5mm |
| M3.5 | 3.7mm | 8.0mm | 0.5mm |
| M4 | 4.3mm | 9.0mm | 0.8mm |
| M5 | 5.3mm | 10mm | 1.0mm |
| M6 | 6.4mm | 12mm | 1.6mm |
| M7 | 7.4mm | 14mm | 1.6mm |
| M8 | 8.4mm | 16mm | 1.6mm |
| M10 | 10.5mm | 20mm | 2.0mm |
| M11 | 12.0mm | 24mm | 2.5mm |
| M12 | 13mm | 24mm | 2.5mm |
| M14 | 15mm | 28mm | 2.5mm |
| M16 | 17mm | 30mm | 3.0mm |
| M18 | 19mm | 34mm | 3.0mm |
| M20 | 21mm | 37mm | 3.0mm |
| M22 | 23mm | 39mm | 3.0mm |
| M24 | 25mm | 44mm | 4.0mm |
| M27 | 28mm | 50mm | 4.0mm |
| M30 | 31mm | 56mm | 4.0mm |
| M33 | 34mm | 60mm | 5.0mm |
| M36 | 37mm | 66mm | 5.0mm |
| M39 | 40mm | 72mm | 6.0mm |
| M42 | 43mm | 78mm | 7.0mm |
| M45 | 46mm | 85mm | 7.0mm |
| M48 | 50mm | 92mm | 8.0mm |
| M52 | 54mm | 98mm | 8.0mm |
| M56 | 58mm | 105mm | 9.0mm |
| M60 | 62mm | 110mm | 9.0mm |
| M64 | 66mm | 115mm | 9.0mm |
18 Products
