Metric Rectangular Section DIN 127B Bright Zinc Plated

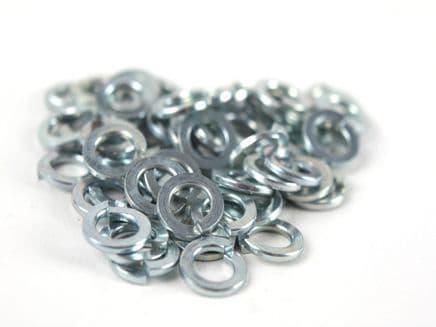

Spring Washers Rectangular Section Bright Zinc Plated To Spec DIN 127B

M4 - M12 Spring Washers Are Packed In 100's


M16 - M24 Spring Washers Are Packed In 10's


Bolt SizeInside DiameterOutside DiameterThickness
M44.1mm7.6mm0.9mm
M55.1mm9.2mm1.2mm
M66.1mm11.8mm1.6mm
M88.1mm14.8mm2.0mm
M1010.1mm16mm2.2mm
M1212.2mm21.1mm2.5mm
M1414.2mm24.1mm3.0mm
M1616.2mm27.4mm3.5mm
M2020.2mm33.6mm4.0mm
M2222.5mm35.9mm4.0mm
M2424.5mm40.0mm5.0mm
